Last Updated on July 4, 2025

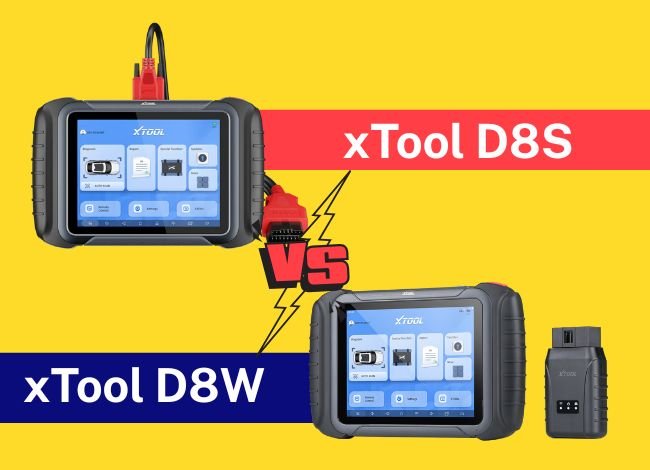

When considering a professional-grade automotive scan tool, two popular models from xTool often come up: the xTool D8S and the xTool D8W. Both fall into xTool’s D‑series lineup and offer powerful smart diagnostic solutions, but each has its unique strengths. This comprehensive review breaks down their features, performance, connectivity, user experiences, and value so you can make an informed decision suited to your needs. If you’re trying to choose between two of XTool’s top diagnostic scanners, this XTool D8S vs D8W comparison will help you understand the key differences and determine which one best fits your automotive needs.
Technical Specification Comparison Table: XTool D8S vs D8W
| Specification | xTool D8S | xTool D8W |
|---|---|---|
| Display | 8-inch HD Touchscreen (1024×768) | 8-inch HD Touchscreen (1024×768) |
| Operating System | Android 10 | Android 10 |
| Processor | Quad-core (approx. 1.8 GHz) | Quad-core (approx. 1.8 GHz) |
| Memory (RAM) | 4 GB | 4 GB |
| Storage (ROM) | 64 GB | 64 GB |
| Connectivity | Wired OBD-II cable | Wireless VCI (Wi-Fi 2.4GHz/5GHz) |
| Wi-Fi Capability | No (Wired Only) | Yes |
| Bluetooth | No | No (Wi-Fi based wireless) |
| Battery | 10,000mAh | 10,000mAh |
| Camera | 8 MP rear camera | Built-in camera |
| Service Functions | 38+ special functions | 38+ special functions |
| ECU Coding | Yes (VAG, Benz, BMW, Ford PMI, Mazda) | Yes (VAG, Benz, BMW, Ford PMI, Mazda) |
| Topology Mapping | Yes | Yes |
| ADAS Calibration | Yes | Yes |
| CAN FD & DoIP Protocol | Supported | Supported |
| Key Programming Support | With accessories | With accessories |
| Software Updates | 3 Years Free Updates | 3 Years Free Updates |
| Approximate Price | $649–$824 | $619–$699 |
Design and Build Quality: Comparable, Robust, and Professional
Both the D8S and D8W are built on a sturdy Android 10 tablet platform, featuring an 8‑inch capacitive touchscreen with a clear 1024×768 resolution. Internally, each tablet utilizes a quad‑core processor running around 1.8 GHz, coupled with 4 GB of RAM and 64 GB of onboard storage. With a powerful battery rated around 5,000 mAh (equivalent to 10,000 mAh), these devices provide ample runtime even during extended diagnostic sessions.

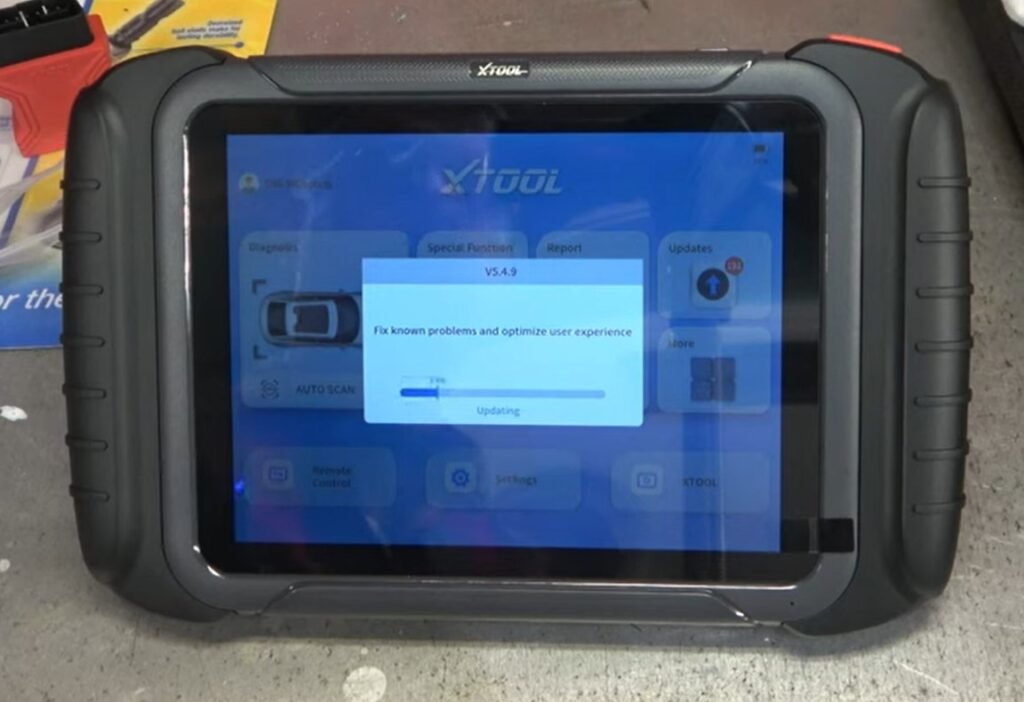

The D8S connects via a wired OBD-II cable and includes all the standard sensors—accelerometer, ambient light sensor, rear 8 MP camera with flash, internal microphone, and speaker. It is a rugged tool designed for daily use in workshops or DIY environments. The D8W is nearly identical in form factor but forgoes the cable; instead, it relies on a wireless VCI dongle that supports both 2.4 GHz and 5 GHz Wi‑Fi for improved diagnostic flexibility.
Diagnostic Intelligence: Equivalently Capable
From a diagnostic standpoint, there is little the D8S and D8W cannot do. They both deliver full OBD-II system diagnostics compatible with 1996‑newer vehicles including U.S., European, and Asian makes. In real-time use, either tool can read and clear fault codes, display freeze frame data, trace live vehicle data, and execute unlimited bi‑directional control commands—tasks such as cycling fans, running active tests, or moving windows remotely.
On top of those standard features, both models include topology module mapping. This innovative feature graphically outlines the vehicle’s control modules and highlights communication pathways, making it easier to isolate problem areas. Such detailed mapping is typically only found in diagnostic tools at much higher price points.
Service Functions, Diagnostics, and ECU Coding
The heart of any professional scan tool lies in its service functions, and here both xTool units shine. They support over 38 service functions—ranging from reset and adaptation routines for oil, brakes, SAS, throttle, DPF, injector coding, TPMS, ABS bleeding, zero‑point calibration, and beyond. This comprehensive service toolkit lets technicians and DIYers perform nearly any regular or advanced maintenance task.
Beyond service resets, both the D8S and D8W are equipped for advanced ECU coding and module flashes. Users can access hidden manufacturer features across brands such as VW, Audi, Mercedes, BMW, Mazda, Toyota, Lexus, Ford, and Lincoln. The PMI (Programmable Module Installation) feature allows off-line programming of modules, while guided coding steps streamline work on newer European vehicles.
Key programming as well as immobilizer and transponder service options are impressively robust. The D8S supports full key programming capabilities, including PIN-code retrieval, dealer key creation, IMMO data handling, remote frequency detection, and even handling “All Key Lost” scenarios when used alongside optional accessories such as the KC100 or KC501 modules. The D8W offers identical functionality.
Connectivity: Wired Precision or Wireless Freedom?
The D8S maintains a dedicated wired OBD-II connection. While conventional, this ensures ultra-reliable performance with no risk of signal interference. Setting it up involves plugging the cable into the vehicle port, selecting the diagnostic function, and going to work.

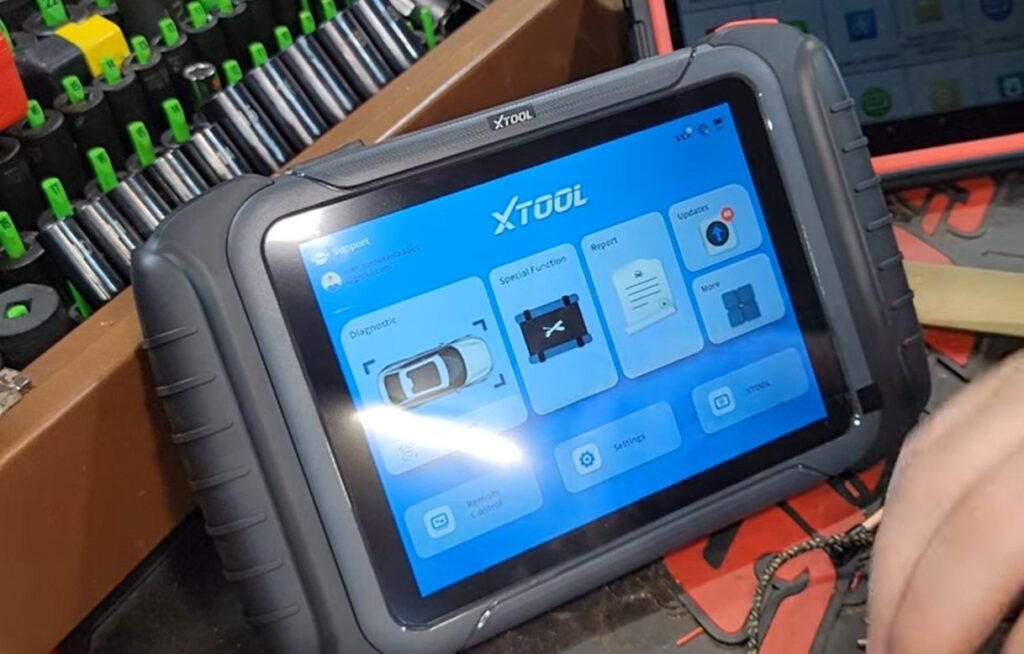

In contrast, the D8W introduces a wireless VCI – a Wi‑Fi dongle that enables a completely cable‑free experience with a substantial range of up to 66 feet. Mechanics can walk around the vehicle, stand in the trunk, or move freely during a running vehicle scan. Wi‑Fi connectivity also supports DoIP protocol diagnostics, often required for newer vehicles. According to professional users, the performance rivals legacy dealer scanners that cost well over $1,000.
User Experience in Action
Regarding workflow, the D8S interface is clean, easy to navigate, and intuitive according to user reports. It offers quick data graphing, code clearing, and service routines with responsive touch interactions .
For those who prefer hands-free diagnostics, the D8W’s wireless control feels revolutionary. Technicians regularly praise its quick Wi‑Fi connect times—up to ten seconds—and ability to pull live data while moving around . One notable testimonial includes a user calling it “a professional level bi‑directional scan tool at a very reasonable cost”. Another review highlighted the speed and stability of the Bluetooth replacement, noting the D8W’s Wi‑Fi performance “on par with $1,200–$2,000 tools”.
Advanced Capabilities and Add-Ons
Aside from core diagnostics, both devices support ADAS calibrations for sensor alignment tasks, a rare feature in mid-priced scanners. Data logging, graphing, and CSV export are also available on both units, allowing technicians the freedom to record and analyze vehicle performance. The 8 MP camera on the D8S (and the tablet’s front-facing camera on the D8W) can further assist with visual inspections when diagnosing damage or component positioning .
Pricing, Software Updates, and Value
From a value perspective, the D8W is slightly lower priced, with current listings around $619–699 depending on regional offers . Its wireless freedom and remote capabilities present excellent value compared to its wired sibling.
Both units come with three years of free software updates. Users have noted that xTool keeps pace with new vehicle models and emerging systems promptly. In one example, support for a 2012 Qashqai was issued within 48 hours of request .
Potential Concerns and Caveats
The only significantly unique concern surfaced in an older model (D8 or D8BT) regarding embedded Wi‑Fi and camera functionality, representing a data privacy question. However, this did not seem prevalent with the robust xTool‑branded D‑series products. For best parity of privacy and unrestricted diagnostics, both devices are safe when used within typical repair environments.
Which Tool is Right for You? Xtool D8S or D8W?
Deciding between the Xtool D8S vs D8W really comes down to how you prefer to work. If you need the rock-solid reliability of a cable connection and prefer direct plug-and-play, the D8S is ideal. Its full suite of diagnostic and programming features, plus a reliable tethered connection, make it a sturdy and dependable workshop companion.
If your workflow involves walking around the vehicle, accessing EV components while monitoring running diagnostics, or calibrating ADAS systems from various angles, the D8W provides a freedom of movement that transforms the diagnostic experience. Its Wi‑Fi speed and long range ensure reliable connectivity, and it matches the D8S in every capability except using a physical cable.
Real User Impressions Highlight the Divide
Long-term users of the D8S appreciate its intuitive mapping, responsive touchscreen, and dependable performance under daily use . D8W users frequently mention the thrill of topping off performance with wireless mobility and factory-level guided functions, branding it one of the best value buys in its class .
Final Verdict: XTool D8S vs D8W – Which will be Better?
In short, both the xTool D8S and D8W deliver exceptional diagnostics, programming, and service reset capabilities. They are equal in brand support, hardware specs, and software depth. The key difference lies in how you choose to connect. The D8S offers wired dependability, while the D8W gives you a wireless edge—with no compromise in performance or features.
If you frequently use a diagnostic tablet around a vehicle or value flexibility and Wi‑Fi operation over cable limitations, the D8W is the clear recommendation. For professional shops or tech-driven DIYers who prioritize reliability and wired connections, the D8S is the strong, dependable choice.
In both cases, you’re choosing tools that rival much more expensive equipment in performance and software features. Comparing xTool’s diagnostic offerings to dealer-grade alternatives, it’s clear both D8S and D8W represent some of the best midrange tools on the market today.
Let me know if you’d like me to add visual comparisons, product carousels, or install guides!
Frequently Asked Questions (FAQs)
Q1: Which one is better between xTool D8S vs D8W?
Both tools offer nearly identical diagnostic capabilities, service functions, ECU coding, and special features. The main difference lies in connectivity. The xTool D8S is wired, which provides reliable connection without any risk of wireless interference. The xTool D8W, on the other hand, offers full wireless operation with Wi-Fi connectivity, giving you the freedom to move around the vehicle while diagnosing. If you prefer cable-free mobility, the D8W has a clear advantage.
Q2: Is the xTool D8W wireless VCI stable?
Yes. The xTool D8W uses advanced Wi-Fi (both 2.4 GHz and 5 GHz) which allows for a very stable and fast connection with minimal latency. Many users report that the wireless VCI feels just as fast and reliable as wired tools, even allowing remote scanning from up to 66 feet away.
Q3: Can both xTool D8S and D8W perform ECU coding?
Absolutely. Both the xTool D8S and D8W support advanced ECU coding on multiple car brands like BMW, Mercedes, VW, Audi, Ford, Lincoln, and Mazda. They also support Programmable Module Installation (PMI) and offline programming for certain modules, making them highly effective for professional repairs and module replacement.
Q4: Does the xTool D8W require internet access for diagnostics?
No. The xTool D8W connects via its own Wi-Fi to the VCI dongle; it does not require an active internet connection for scanning, diagnostics, or service functions. However, internet access is needed for software updates or downloading newer firmware updates.
Q5: How often do xTool D8S and D8W receive software updates?
Both models include three years of free software updates from xTool. The company is known for releasing frequent updates to include newer vehicle models, additional special functions, and protocol support. Many users appreciate the speed at which xTool responds to update requests for newer vehicles.
Q6: Can beginners use xTool D8S or D8W easily?
Yes. Both tools are designed with user-friendly interfaces. Even first-time users can perform full system scans, read live data, access special functions, and clear codes with minimal learning curve. The software provides guided menus, making it highly accessible even for non-professionals.
Q7: Do both models support CAN FD and DoIP protocols?
Yes, both the xTool D8S and D8W fully support modern protocols such as CAN FD and DoIP, making them compatible with many 2020+ vehicles that utilize these advanced communication systems.
Q8: Is there any performance difference in diagnostic speed between wired (D8S) and wireless (D8W)?
In practical use, the diagnostic speed is almost identical. Wired connections like D8S may offer slightly faster data transfers in rare cases of high data volume, but most users find the wireless D8W delivers excellent real-time performance thanks to its fast Wi-Fi connectivity.
Q9: Which one is more future-proof: xTool D8S or D8W?
Both models are highly future-proof thanks to CAN FD, DoIP, ADAS calibration, ECU coding, and regular software updates. The D8W may have a slight edge in long-term usability simply because wireless diagnostic tools continue to grow in popularity and flexibility.
Q10: Is xTool D8W worth paying a bit extra for wireless features?
For many users, yes. The ability to move freely around the vehicle during bi-directional tests or guided calibrations adds significant convenience. If your workflow benefits from mobility and remote operation, the D8W justifies its slightly higher cost.
Still have question after reading this XTool D8S vs D8W comparison? Commnet below.
